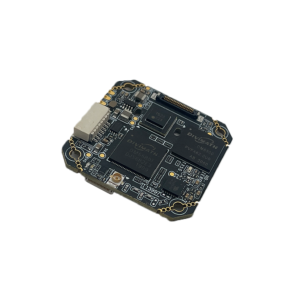

HDZero Whoop VTX (TX5S.1)
RM210.00
Availability: 10 in stock
Description
The HDZero Whoop VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
Specifications
| Model: | HDZero Whoop |
| SKU: | HDZ3110 |
| Frequency: | 5.8G |
| Resolution Default: | 1280*720@60fps |
| RF power: | 25mw/200mw |
| RF Connector: | U.FL |
| Interface: | 4 lane MIPI CSI YUV422 |
| Video Connector: | 20 Position 0.30mm Pitch |
| Size: | 32.5mm x 32.5mm x 7mm |
| Weight: | 5.4g |
| Power: | 410mA@12V |
| power input | 7V-26V(2S-6S) |
| Mounting: | 25.5mm*25.5mm,M2 clearance hole |
Includes
HDZero Whoop VTX * 1;
Power/ Uart Cables * 4；
