HDZero Freestyle V2 Kit

Description

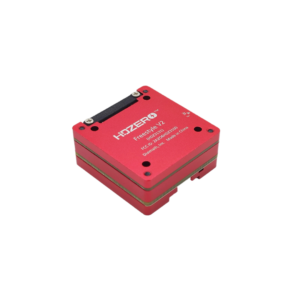

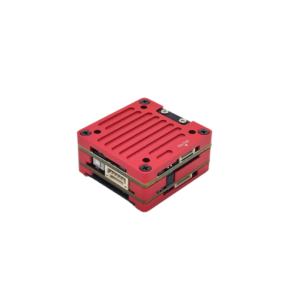

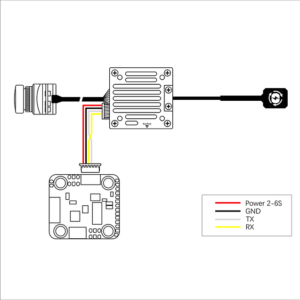

The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.

The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.

The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.

Specifications

Includes

• 1x Freestyle V2 VTX
• 1x Nano 90 Camera (with 19 x 19 Mount)
• 1x HDZero RHCP antenna
• 1x 120mm Mipi Cable
• 1x Power Cable
• 1x SA Cable
• 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
• 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
• 1x Double Sided Tape (29 x 30 x 1mm )
