RushFPV Blade F722 Flight Controller (30*30) For DJI Digital V2 Version

RM225.00

Availability: 9 in stock

BLADE  722 v2 Digtal version

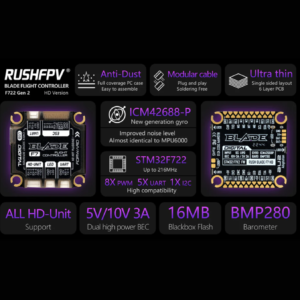

Features

  • High-performance STM32 F722 MCU with speeds up to 216MHz.
  • ICM42688P gyroscope, independent low-noise power supply.
  • Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port.
  • Dual high power synchronous rectifier BEC, supports up to 36V input and provides stable 5V/10V 3A output.
  • Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
  • Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
  • PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings

Specification

  • MCU: STM32F722RET6
  • GYRO: ICM42688P
  • BLACKBOX :16MB FLASH
  • BEC:INPUT 7-36V / 3-6S LIPO,OUTPUT 1 5V 3A,OUTPUT 2 10V 3A
  • PORT: 8×PWM 5×UART 1×I2C
  • ADC: V-BATT / CURR-ESC
  • LED: WS2812 LED STRIP
  • SIZE: 36.5mm*37mm*5.2mm
  • BARO:BMP280
  • MOUNTING HOLES:30.5*30.5mm
  • TARGET: RUSH_BLADE_F7_HD WEIGHT 11g(without cable)

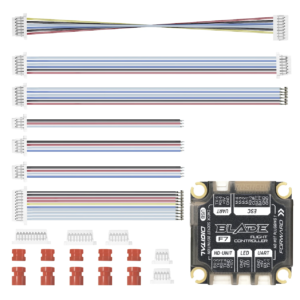

Includes

  • 1 x RUSH BLADE F722 V2 30×30 Flight Controller For DJI HD
  • 2 x 60MM UART Cable
  • 2 x 60MM UART Cable
  • 1 x 60MM ESC Cable
  • 1 x 60MM ESC Cable
  • 1 x 60MM ESC Cable
  • 1 x 60MM LED Cable
  • 1 x 90MM HDCable
  • 1 x 110MM Air Unit Cable
  • 5 x 8MM Grommet
  • 5 x 5MM Grommet
