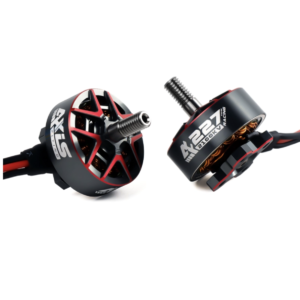

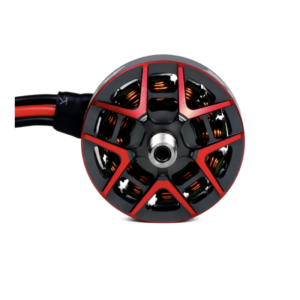

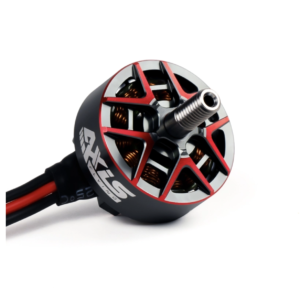

Axisflying AF227 1960KV/2100KV Racing Brushless Motor

RM50.00RM100.00

– AF series motor are axisflying highest quality line with Premium performance, the highest standard.

– AF227 motors released with 2 KVs, 2010 and 1960 for 6s, 2010kv is main for FPV racing, 1960KV is the most popular KV for freestyle with silky smooth and torquey low throttle with an sabng curve.

Bearing Shield Technology

– An IP53 rating dustproof and waterproof bearing placement design.

– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

– Increased thrust effciency and say goodbye to crush motor bearings

Specifications

– 1960KV is for Sbang style freestyle @6S

– 2010KV is for racing @6S

– Configuration: 12N14P / N52H arc magnet

– Motor stator size: 2207

– Motor mounting hole size: 4*M3 (Φ16mm)

– Motor cables: AWG 20#, 150MM

– Motor dimensions (Dia *Len): Φ27*33MM  / M5 shaft

– Motor weight (excluding 150MM cables) : 30g

– The motor is very powerful that can get over 1.9KG and most current is about 45A

Package

– 1* AF227 motor

– 4* M3*8 screws for motor

– 1* M3*4 screw for lock shaft

– 1* M5 Flanged Nylon Insert lock

– 1* O-ring

– 2* Washers
